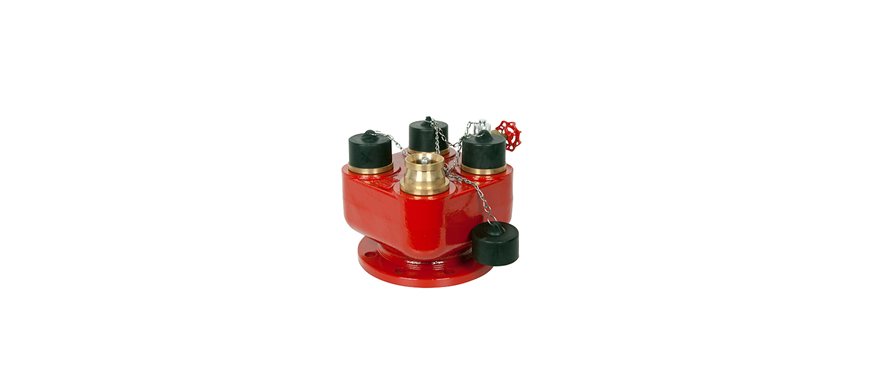

4 Way Inlet Breeching

4 Way Inlet Breeching

Description: -
Inlet Breeching is installed at Dry risers in buildings for Fire Fighting use , its fitted with Inlet connection  at fire brigade access level and outlet connection at given points which is normally dry but capable of being charged with water by pumping from fire service. Its installed with male Instantaneous connections and drain valves.
The Inlet Breeching can withstand working Pressure at 10 Bar.
Features and Specifications: -
* Body Cast iron, Ductile Iron or Gunmetal
* Size 150 mm Flanged Outlet, flange is drilled as per standards.
* 4 Nos 64 mm Male Instantaneous Inlet connection and Non-Return valves made
of Gunmetal.
* Test Pressure 20 Bar.
* Non- Return valve are loaded with spring.
* Complete Inlet breeching is RED epoxy powder coated.
* Drain valve made of Brass / Gunmetal.
* Cap made of Plastic or Rubber.
* Chain Made of Brass or stainless steel.
