Type A - Hose Reel Cabinet Double Compartment
| Overall Dimension | 740mm (W) X 1540mm (H) X A (D) |
| Material | Mild Steel / Stainless Steel |
| Thickness | 1.2mm/1.6 mm |
| Installation | Surface / Wall Mounted / Recessed |
| Capacity | Manual Or Swing Hose Reel ¾’’ Or 1’’ & 2 Pcs Fire Extinguishers |
| Paint Finish | Epoxy Powder Red / White |
| Code No. | Dimension (Depth) In ( In mm ) | Type |
| ASK001-HRC- MS-400 | 400 | Surface / Wall Mounted |
| ASK001-HRC- MS-320 | 320 | Surface / Wall Mounted |
| ASK001-HRC- MS-250 | 250 | Surface / Wall Mounted |
| ASK002-HRC- MS-400 | 400 | Recessed |
| ASK002-HRC- MS-320 | 320 | Recessed |
| ASK002-HRC- MS-250 | 250 | Recessed |
| ASK003-HRC- SS- 400 | 400 | Recessed |
| ASK003-HRC- SS- 320 | 320 | Recessed |
| ASK003-HRC- SS- 250 | 250 | Recessed |
* Can be customized as per customer’s requirement
Type B - Hose Reel Cabinet Double Compartment
| Overall Dimension | 740mm (W) X 1540mm (H) X A (D) |
| Material | Mild Steel |
| Thickness | 1.2mm/1.6 mm |
| Installation | Surface / Wall Mounted / Recessed |
| Capacity | Manual Or Swing Hose Reel ¾’’ Or 1’’ & 1 No 9 KG Fire Extinguishers |
| Paint Finish | Epoxy Powder Red / White |
| Code No. | Dimension (Depth) In ( In mm ) | Type |
| ASK004-HRCD- MS- 400 | 400 | Surface / Wall Mounted |
| ASK004-HRCD- MS- 320 | 320 | Surface / Wall Mounted |
| ASK004-HRCD- MS- 250 | 250 | Surface / Wall Mounted |
| ASK005-HRCD- MS- 400 | 400 | Recessed |
| ASK005-HRCD- MS- 320 | 320 | Recessed |
| ASK005-HRCD- MS- 400 | 250 | Recessed |
* Can be customized as per customer’s requirement

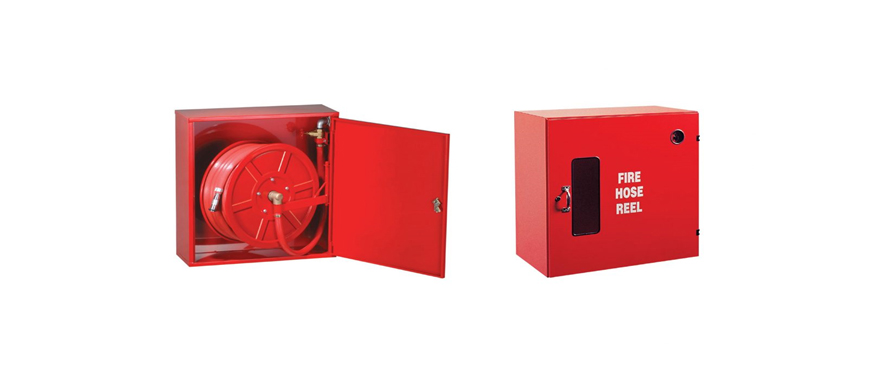

Type C - Hose Reel Cabinet Double Compartment
| Overall Dimension | 700mm (W) X 800mm(H) X A (D) |
| Material | Mild Steel |
| Thickness | 1.2mm/1.00 |
| Installation | Surface / Wall Mounted / Recessed |
| Capacity | Manual Or Swing Type Hose Reel (22” Or 19” Drum) ¾” Or 1’’ |
| Paint Finish | Epoxy Powder Red |
| Code No. | Dimension (Depth) In ( In mm ) | Type |
| ASK007-HRC2- MS- 400 | 400 | Surface / Wall Mounted |
| ASK007-HRC2- MS- 320 | 320 | Surface / Wall Mounted |
| ASK007-HRC2- MS- 250 | 250 | Surface / Wall Mounted |
| ASK008-HRC2- MS- 400 | 400 | Recessed |
| ASK008-HRC2- MS- 320 | 320 | Recessed |
| ASK008-HRC2- MS- 250 | 250 | Recessed |
* Can be customized as per customer’s requirement
