APPLICATION:
U-BOLTS ARE USED TO SECURE PIPING TO STRUCTURAL MEMBERS. WHEN THE PIPING IS BELOW THE STRUCTURAL MEMBER, THE U-BOLT PROVIDES VERTICAL SUPPORT AND RESTRICTS LATERAL MOVEMENT WHILE ALLOWING FOR AXIAL MOVEMENT.
III WHEN THE PIPING SYSTEM IS ABOVE THE STRUCTURAL MEMBER, THE U-BOLT RESTRICTS LATERAL MOVEMENT AND UPWARD MOVEMENT WHILE ALLOWING AXIAL MOVEMENT OF THE PIPING.

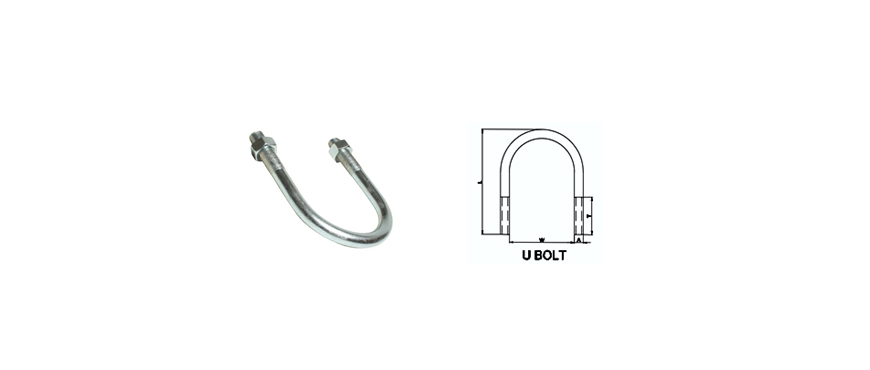

CONSTRUCTION:
U-BOLT IS PROVIDED WITH FOUR STANDARD HEX NUTS AND HAS A LONGER STRAIGHT THREADED LENGTH.
MATERIALS:
MILD STEEL. ALSO OTHER MATERIALS CAN ALSO BE PROVIDED ON REQUEST
FINISH AVAILABLE:
PLAIN, HOT DIP GALVANIZED, ELECTRO-GALVANIZED.
| Product Code | Nominal Pipe Size |
PipeOD (mm) |
Material Dimension (mm) |
Bolt Size(mm) A |
MAX LOAD (KG) | |||
| In. | mm | Rod Dia. W |
Height L |
Thread Length T |
||||
| ASK-UB 0.50 | ½” | DN15 | 21.3 | 21 | 65 | 50 | M10 | 550 |
| ASK -UB 0.75 | ¾” | DN20 | 26.7 | 27 | 77 | 50 | M10 | 550 |
| ASK -UB 01 | 1” | DN25 | 33.4 | 34 | 85 | 50 | M10 | 550 |
| ASK -UB 1.25 | 1 ¼” | DN32 | 42.1 | 43 | 93 | 50 | M10 | 550 |
| ASK -UB 1.50 | 1 ½” | DN40 | 48.2 | 48 | 100 | 50 | M10 | 550 |
| ASK -UB 02 | 2” | DN50 | 60.3 | 60 | 110 | 50 | M10 | 550 |
| ASK -UB 2.50 | 2 ½” | DN65 | 73.0 | 76 | 127 | 50 | M12 | 900 |
| ASK -UB 03 | 3” | DN80 | 88.9 | 89 | 140 | 50 | M12 | 900 |
| ASK -UB 04 | 4” | DN100 | 114.3 | 115 | 165 | 50 | M12 | 900 |
| ASK -UB 05 | 5” | DN125 | 141.3 | 140 | 190 | 50 | M12 | 900 |
| ASK -UB 06 | 6” | DN150 | 168.3 | 168 | 220 | 50 | M12 | 900 |
| ASK -UB 08 | 8” | DN200 | 219.1 | 219 | 295 | 75 | M16 | 1900 |
| ASK -UB 10 | 10” | DN250 | 273.0 | 273 | 370 | 100 | M20 | 3200 |
| ASK -UB 12 | 12” | DN300 | 323.8 | 324 | 420 | 100 | M20 | 3200 |
| ASK -UB 14 | 14” | DN350 | 355.6 | 356 | 455 | 100 | M20 | 3200 |
| ASK -UB 16 | 16” | DN400 | 406.4 | 406 | 505 | 100 | M20 | 3200 |
| ASK -UB 18 | 18” | DN450 | 457.2 | 457 | 555 | 100 | M24 | 4400 |
| ASK -UB 20 | 20” | DN500 | 508.0 | 508 | 605 | 100 | M24 | 4400 |
| ASK -UB 24 | 24” | DN600 | 609.6 | 610 | 710 | 100 | M24 | 4400 |
