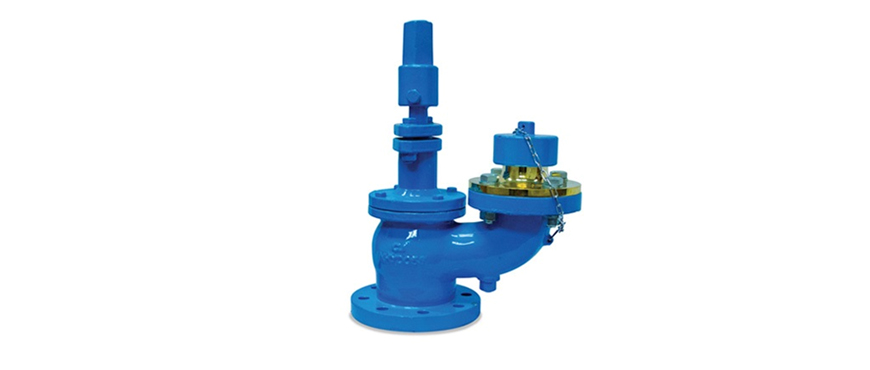

Under Ground Hydrant
PRODUCT DESCRIPTION
Under Ground Fire Hydrants are valves of screw down type and suitable for a maximum working pressure of 16 bar
The underground fire hydrants are manufactured to AS PER BS and EN standards with screwed outlet threaded .
FEATURES
• VALVE AS PER BSI
• Body material made of grey cast iron.
• Material of spindle and threaded part of valves which engages with it is made of stainless steel.
• Material for the screwed outlet is made of high tensile brass.
Spindle sealing (two seals) is of the toroidal sealing ring (O Ring) type and are Capable of changing while the valve is under pressure and fully closed.
• A wiper ring is positioned above the spindle sealing s to prevent the ingress of foreign matter.
• Each hydrant shot is blasted (inside and outside).
• All cast iron parts are thoroughly cleaned and painted
| SI. No. | Description | Material |
| 1 | Body | Grey Cast iron (C.I) |
| 2 | Body Seating Seal | Rubber |
| 3 | Spindle | Stainless Steel |
| 4 | Bonnet | Grey Cast Iron (C.I) |
| 5 | Spindle Cap | Grey Cast Iron |
| 6 | Spindle ( Stem ) M Seal | Rubber |
| 7 | Gland | Gray Cast Iron |
| 8 | Gland Wiper Ring | Teflon |
| 9 | Outlet | High Tensile Brass |
| 10 | Outlet cap | Grey Cast Iron |
| 11 | Outlet Gasket | Rubber |
| 12 | Drain Bolt | Forged Steel |
