APPLICATION:
CLEVIS HANGER provides for sizeable loads to be supported and For an elevation adjustment depending upon the pipe diameter. The lower nut adjusts the piping to the proper elevation and the Upper nut, when locked into position, prevents loosening due to vibration.
CONSTRUCTION:

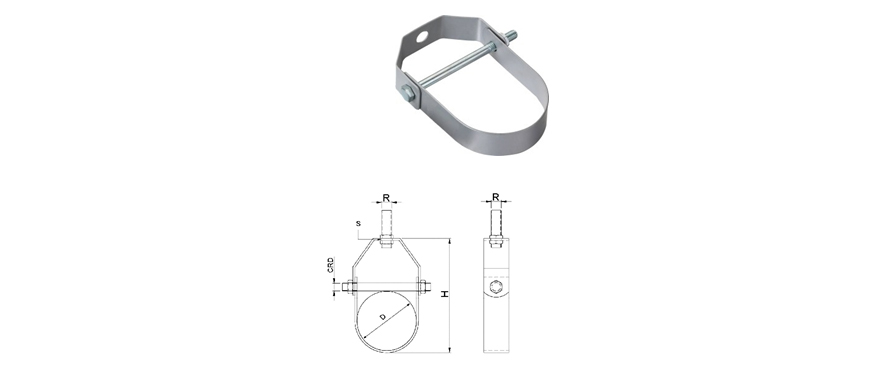

CLEVIS HANGER consists of a yoke and a support strap made from shaped carbon steel strip and a joining bolt. Pipe will not pinch when installing. Engineered design aligns bolt holes for quicker overhead installation.
MATERIAL:
Carbon Steel and Mild steel . Also other
materials can also be provided on request
MAXIMUM TEMPERATURE :
343°C (650°F)
FINISH AVAILABLE:
Plain, Hot Dip Galvanized, Electro-Galvanized.
| Product Code | Nominal Pipe Size | Pipe OD(mm) D |
Material Dimension (mm) | Hanger Rod Size (mm) R |
Cross Bolt Dia. (CRD ) | MAX LOAD (KG) | ||
| In. | mm | Height H |
Top Hole Dia. S |
|||||
| ASK-CH-0.50 | ½” | DN15 | 21.3 | 68 | 11 | M10 | M8 | 350 |
| ASK-CH-0.75 | ¾” | DN20 | 26.7 | 72 | 11 | M10 | M8 | 350 |
| ASK-CH- 01 | 1” | DN25 | 33.4 | 76 | 11 | M10 | M8 | 350 |
| ASK-CH-1.25 | 1 ¼” | DN32 | 42.1 | 87 | 11 | M10 | M8 | 350 |
| ASK-CH- 1.50 | 1 ½” | DN40 | 48.2 | 97 | 11 | M10 | M8 | 350 |
| ASK-CH- 02 | 2” | DN50 | 60.3 | 114 | 11 | M10 | M8 | 350 |
| ASK-CH- 2.50 | 2 ½” | DN65 | 73.0 | 142 | 13 | M12 | M10 | 780 |
| ASK-CH- 03 | 3” | DN80 | 88.9 | 165 | 13 | M12 | M10 | 780 |
| ASK-CH- 04 | 4” | DN100 | 114.3 | 202 | 13 | M12 | M10 | 780 |
| ASK-CH- 05 | 5” | DN125 | 141.3 | 236 | 13 | M12 | M12 | 1250 |
| ASK-CH- 06 | 6” | DN150 | 168.3 | 278 | 13 | M12 | M12 | 1250 |
| ASK-CH- 08 | 8” | DN200 | 219.1 | 338 | 13 | M12 | M12 | 2100 |
| ASK-CH- 10 | 10” | DN250 | 273.1 | 419 | 17 | M16 | M16 | 2100 |
| ASK-CH- 12 | 12” | DN300 | 323.8 | 490 | 21 | M20 | M20 | 2100 |
| ASK-CH- 14 | 14” | DN350 | 355.6 | 556 | 21 | M20 | M20 | 3800 |
| ASK-CH- 16 | 16” | DN400 | 406.4 | 610 | 25 | M24 | M20 | 3800 |
| ASK-CH- 18 | 18” | DN450 | 457.2 | 675 | 25 | M24 | M24 | 4000 |
| ASK-CH- 20 | 20” | DN500 | 508.0 | 715 | 32 | M30 | M24 | 4000 |
| ASK-CH- 14 | 24” | DN600 | 609.6 | 850 | 32 | M30 | M24 | 9400 |
| ASk-CH- 30 | 30” | DN750 | 762.0 | 995 | 32 | M30 | M24 | 9400 |
