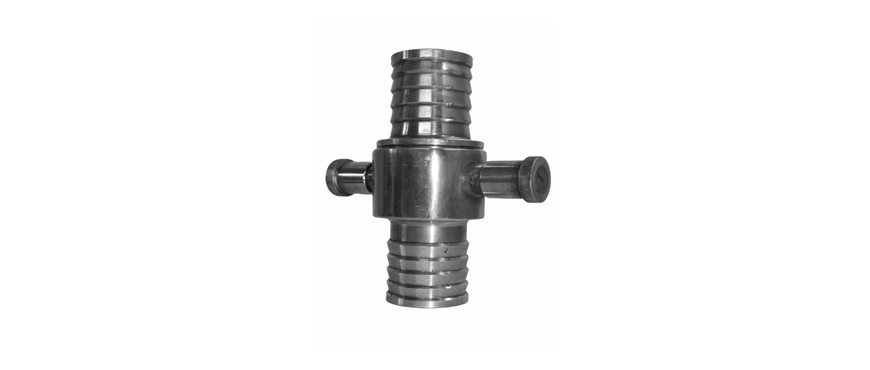

DELIVERY HOSE COUPLING
PRODUCT DESCRIPTION
Coupling are suitable for use with delivery hose and for fighting purposes
The delivery hose couplings are of instantaneous Pattern, Pull release type with ribbed tail and manufactured to comply to BS 336:2010 standards
The coupling are suitable for use at working pressure not exceeding 15 bar
FEATURES
- AS PER BSI
- Castings are clean sound and free from gross porosity
- Machined surface is within tolerance .
- Coupling washers are made of natural rubber .
- Plungers are of self-locking type.
| Coupling Type | Instantaneous Male / Female Coupling With Pull Release |
| Tailed Ends | Ribbed Tail Type |
| Test Pressure | 22.5 Bar For 1 Minute |
| SI.No. | Description | Material |
| 1 | Body Male / Female Coupling | A. Aluminum B. Copper Alloy |
| 2 | Washer | Rubber |
| 3 | Spring | Spring Steel |
| 4 | Self locking Nut | Aluminum |
