APPLICATION:
A Standard Pipe Strap is recommended for supporting a piping system with fittings vertically or horizontally to walls or ceilings. It can be used as a restrainer when installed on top of structural wood beams for beam, for limiting pipe movements due to thrust loads during sprinkler system start-up.
CONSTRUCTION:

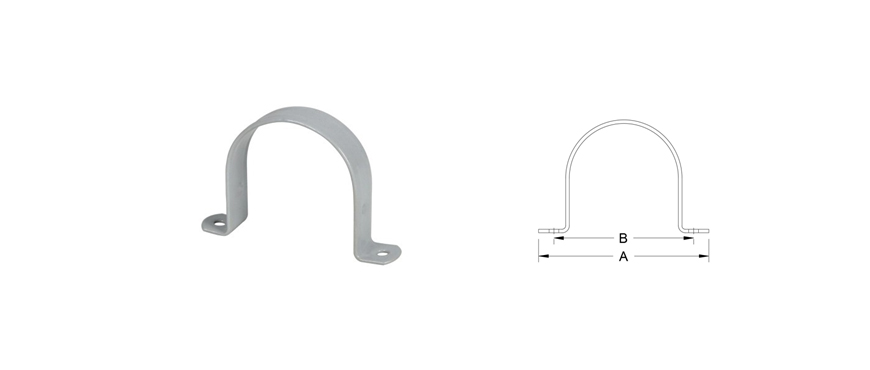

A Standard Pipe Strap consists of a piece of carbon steel shaped to hold the pipe down to walls or ceilings.
MATERIALS:
Mild Steel. Also other materials can also be provided on request
MAXIMUM TEMPERATURE
:343°C (650°F)
FINISH AVAILABLE:
Plain, Hot Dip Galvanized, Electro-Galvanized.
| Product Code | Nominal Pipe Size | Pipe OD (mm) | Hanger Dimension (mm) | Bolt Size(mm) | MAX LOAD (KG) | ||
| In. | mm | Overall dimension A |
Distance Between two bolt B |
||||
| ASK-US 0.50 | ½” | DN15 | 21.3 | 76 | 51 | M8 | 500 |
| ASK -US 0.75 | ¾” | DN20 | 26.7 | 82 | 57 | M8 | 500 |
| ASK -US 01 | 1” | DN25 | 33.4 | 89 | 64 | M8 | 500 |
| ASK -US 1.25 | 1 ¼” | DN32 | 42.1 | 96 | 71 | M8 | 500 |
| ASK -US 1.50 | 1 ½” | DN40 | 48.2 | 102 | 77 | M8 | 500 |
| ASK -US 54 | - | 54 | 108 | 83 | M8 | 500 | |
| ASK -US 02 | 2” | DN50 | 60.3 | 114 | 89 | M8 | 500 |
| ASK -US 67 | - | 67 | 121 | 96 | M8 | 500 | |
| ASK -US 2.50 | 2 ½” | DN65 | 73.0 | 145 | 113 | M8 | 600 |
| ASK -US 82 | - | 82 | 152 | 120 | M8 | 600 | |
| ASK -US 03 | 3” | DN80 | 88.9 | 160 | 128 | M8 | 600 |
| ASK -US 3.50 | 3 ½” | DN90 | 101.6 | 170 | 138 | M8 | 600 |
| ASK -US 108 | - | 108 | 178 | 146 | M8 | 600 | |
| ASK -US 04 | 4” | DN100 | 114.3 | 185 | 153 | M8 | 600 |
| ASK -US 126 | - | 126 | 196 | 164 | M8 | 600 | |
| ASK -US 05 | 5" | DN125 | 141.3 | 210 | 178 | M10 | 600 |
| ASK -US 148 | - | 148 | 218 | 186 | M10 | 600 | |
| ASK -US 155 | - | 155 | 225 | 193 | M10 | 600 | |
| ASK -US 06 | 6” | DN150 | 168.3 | 237 | 205 | M10 | 600 |
| ASK -US 179 | - | 179 | 249 | 217 | M10 | 600 | |
| ASK -US 190 | - | 190 | 260 | 228 | M10 | 800 | |
| ASK -US 205 | - | 205 | 275 | 243 | M10 | 800 | |
| ASK -US 08 | 8” | DN200 | 219.1 | 289 | 257 | M10 | 800 |
| ASK -US 230 | - | 230 | 300 | 268 | M10 | 800 | |
| ASK -US 241 | - | 241 | 332 | 291 | M12 | 1250 | |
| ASK -US 263 | - | 263 | 354 | 313 | M12 | 1250 | |
| ASK -US 10 | 10’’ | DN250 | 273.0 | 364 | 323 | M18 | 1250 |
| ASK -US 295 | - | 295 | 386 | 345 | M18 | 1250 | |
| ASK -US 12 | 12” | DN300 | 323.8 | 417 | 376 | M18 | 1250 |
| ASK -US 14 | 14” | DN350 | 355.6 | 447 | 409 | M18 | 1800 |
| ASK -US 374 | - | 374 | 465 | 427 | M18 | 1800 | |
| ASK -US 16 | 16” | DN400 | 406.4 | 497 | 459 | M18 | 1800 |
| ASK -US 432 | - | 432 | 523 | 485 | M18 | 1800 | |
| ASK -US 18 | 18” | DN450 | 457.2 | 547 | 509 | M18 | 1800 |
| ASK -US 482 | - | 482 | 573 | 535 | M18 | 1800 | |
| ASK -US 20 | 20” | DN500 | 508.2 | 599 | 561 | M18 | 1800 |
| ASK -US 533 | - | 533 | 624 | 586 | M18 | 1800 | |
| ASK -US 559 | - | 559 | 650 | 612 | M18 | 1800 | |
| ASK -US 583 | - | 583 | 674 | 636 | M18 | 1800 | |
| ASK -US 24 | 24” | DN600 | 609.6 | 701 | 663 | M18 | 1800 |
| ASK -US 658 | - | 658 | 766 | 721 | M18 | 2300 | |
| ASK -US 690 | - | 690 | 798 | 753 | M18 | 2300 | |
| ASK -US 760 | - | 760 | 868 | 823 | M18 | 2300 | |
| ASK -US 863 | - | 863 | 971 | 926 | M18 | 2300 | |
| ASK -US 918 | - | 918 | 1026 | 981 | M18 | 2300 | |
