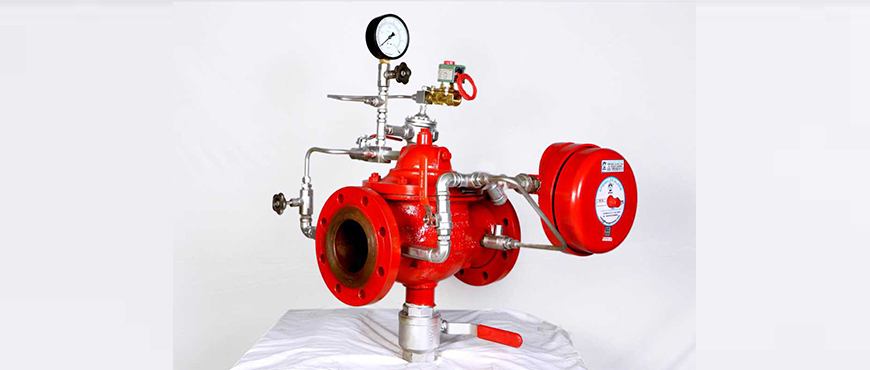

Deluge Valve
| MODEL | |
| NORMAL SIZES | 2”(50MM), 2.5”(65MM), 3”(80MM), 4”(100 MM), 6”(150 MM), 8”(200MM), 10”(250MM) |
| SERVICE PRESSURE | 1.4 TO 17.5 KG/CM2 (20 PSI TO 250PSI) |
| HYDRO TEST PRESSURE | 35 KG/CM2 ( 500 PSI) |
| FLANGED END CONNECTION | ANSI B 16.5 CL-150,RF |
| MOUNTING | HORIZONTALLY & VERTICALLY |
| APPROVAL | UL LISTED |
| OPTAINAL TRIM | WET TRIM DRY TRIM ELECTRIC TRIM ALARM TRIM |
| THREADED OPENING | BSPT |
| WEIGHT OF VALVE (APPROX) |
2” ( 50 NB)-14.0 KG 2.5”(65 NB)- 24 KG 3”(80 NB):-30 KG 4” (100 NB):-45 KG 6” (150 NB):- 94 KG 8” (200 NB):- 170 KG 10”(250 NB):- 380 KG |
| NOTE:- Valve will be in assemble condition with accessories.*** There is no need to assembly of valve at site.*** This design is 180 Degree suitable for mounting Horizontally & Vertically.*** Flow and Pressure drop less in this design.*** Deluge valve having all tubing and fitting in SS 304 material.*** This valve is auto reset type after use, do not need to reset manually at site.*** |
|
