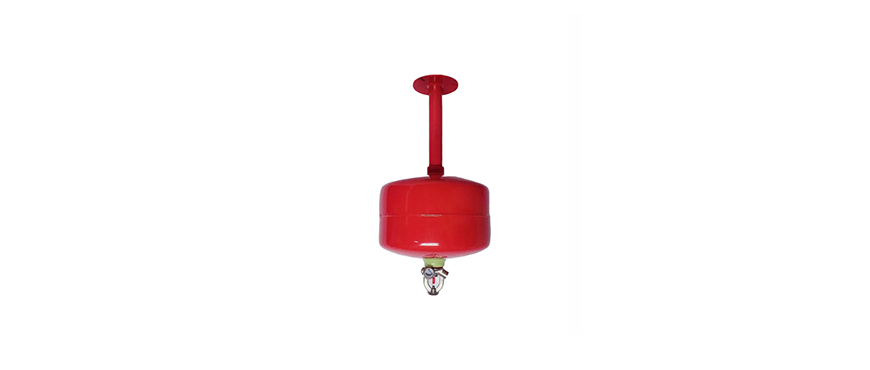

5 KG Modular Fire Extinguisher
| MODEL | ASK/MT/005 |
| CAPACITY IN kg. | 5 kg Capacity |
| Media | ABC Powder/Clean Agent |
| Area Coverage | 3-4m² Approx. |
| Test Pressure | 30 kgf/cm² |
| Anti-Corrosive Treatments | Red Powder Coated |
| Shell Diameter | 240mm ± 5% |
| Overall Height | 265mm ± 25% |
| Charged Weight | 7.5 kg approx. |
| Bulb Temperature | 56-107 degrees |
| Charged Pressure | 15 kgf/cm² |
| Operational time seconds | 8-10 |
| Mounting | Ceiling Mounting Type |
| Cylinder Material | CRC Deep Drawn Sheet |
10 KG Modular Fire Extinguisher
| MODEL | ASK/MT/011 |
| CAPACITY IN kg. | 10 kg Capacity |
| Media | ABC Powder/Clean Agent |
| Area Coverage | 5-7m² Approx. |
| Test Pressure | 30 kgf/cm² |
| Anti-Corrosive Treatments | Red Powder Coated |
| Shell Diameter | 240mm ± 5% |
| Overall Height | 350mm ± 25% |
| Charged Weight | 13.5 kg approx. |
| Bulb Temperature | 56-107 degrees |
| Charged Pressure | 15 kgf/cm² |
| Operational time seconds | 10-15 |
| Mounting | Ceiling Mounting Type |
| Cylinder Material | CRC Deep Drawn Sheet |
