Product description :-

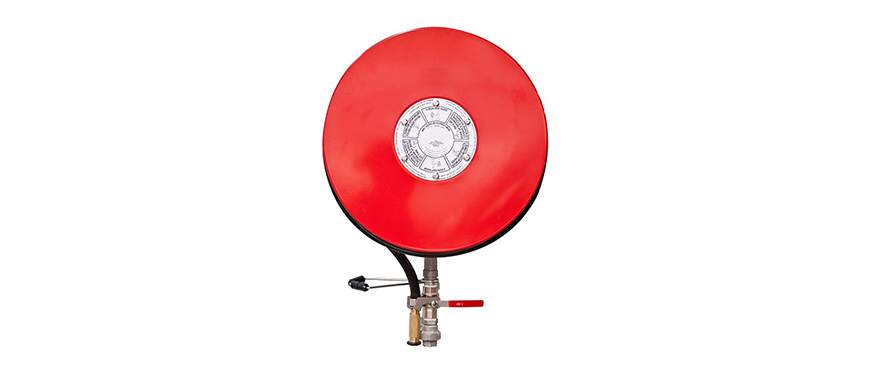

Fire Hose reels provide a very effective firefighting facility with a continuous supply of water available .Its is accompanied by semi-rigid hose to ensure perfect installation in premises.
The fire hose reels are manufactured in manual as per required standards .
As per BS : EN 671
Features :-
They are capable of rotating in one plane ( fixed type ) or rotating in more than one place with mounting on one of the following that is swinging arm ,swinging pipe or swinging door in manual. The nozzle has shut , jet and spray settings. The flow rate of hose reels in jet and spray is 40 liters/Min at 6 bar .
The discs are painted in red powder epoxy coated.
Instructions for Operations :-
First open the valve fully and then after pull out the hose , open the nozzle and adjust the spray settings as required and then aim the nozzle on the fire .After the usage please ensure to wind the hose reel pipe properly in circle , open the nozzle and remove the excess water from the hose .
Model number |
Drum Size |
Hose diameter X length |
Depth of hose reel |
Type |
HR-01-FX-19 |
22”( 560 mm) |
19 mm x 30meters |
350 mm |
Fixed type |
HR-01-FX-25 |
22”( 560 mm) |
25 mm x 30meters |
400 mm |
Fixed type |
